Bed Lift
Hospital Lift is considered as Medical Equipment to care the patients and nurses in the hospital.

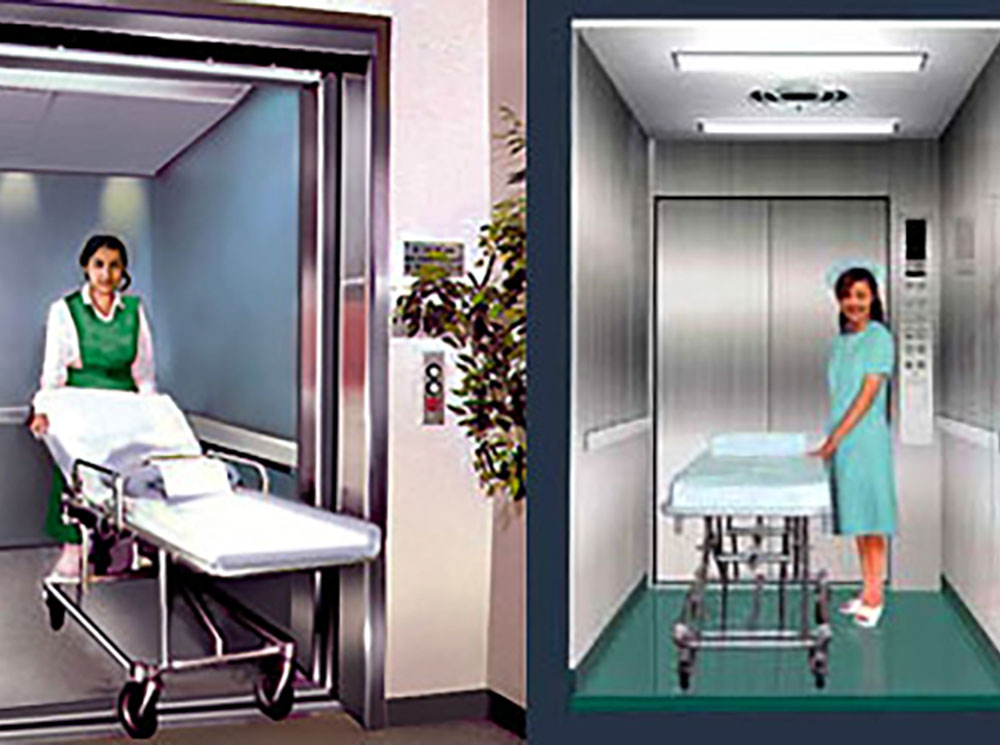

Bed Lift should be met fully the hospital requirements, the car should be big enough to carry: one patient bed and the medical accessories and one nurse/or one hospital staff.
The speed of Bed Lift should be suitable to the patient with VVVF (Variable Voltage & Variable Frequency) controller and good installation, Bed Lift operates smoothly and gently to the patient and the doctor.
The group control in duplex and triplex for 2 & 3 Hospital Lifts saves electricity power and waiting time, the Bed Lifts must be achieved in high reputation, less operation troubles, and avoid moral affect to the patient.
Bed Lift should be adjusted longer open/close time and got the hold function of car door to push safely/gently in and out the patient bed.
Bed Lift needs additional hand rails to help the old patients of safe feeling, Bed Lift also can equip with the additional hit-against bars to protect the patient and the medical equipments. Bed Lift light in the car should be soft and not dazzle patient eyes.
Bed Lift should have a function of “Hall Call Cancellation” on COP (Car Operation Panel) to bypass all unnecessary floors, then to move directly to the demanded floor.
TNE Hospital Elevators are a specialized product line designed specically for medical facilities. They are optimized for transporting patients, stretchers, medical staff, and healthcare equipment. With stable perfor-mance, smooth operation, high safety, and ease of maintenance, TNE hospital elevators are proving to be the most practical and reliable choice for both public and private healthcare institutions.
The elevators are available in a wide range of load capacities from 1000kg to 1600kg, enabling effortless transport of hospital beds and medical devices. Operating speeds range from 1.0 to 1.75 m/s, ideal for buildings from 3 to 10 floors. Door configurations include CO, 2CO, or 4-panel center-opening (4P) types, with wide openings from 1100mm to 1400mm to accommodate stretchers and medical trolleys.
The cabin is equipped with stainless steel handrails, anti-slip flooring, soft LED lighting, and user-friendly control panels. Fire-fighting elevator mode: Compatible with priority operation systems during fire emergencies in accordance with current safety standards.
24/7 operation mode, with optional integration of hall call systems from critical areas such as emergency rooms, operating theaters, or other specialized zones upon request. The control system adopts advanced inverter technology, ensuring energy efficiency and quiet operation. Ideal for general hospitals, private clinics, specialized medical centers, and polyclinics. The system can be integrated with access card readers, surveillance cameras, and contactless call buttons to maintain safety and infection control in sensitive medical environments.
Additionally, TNE’s technical support team provides ongoing maintenance services and is available 24/7 to ensure continuous, safe, and efficient elevator operation.
Operation system
- Full Selective Collective operation: during operation, lift serves calls from the landings in moving direction, service calls from the landings in opposite direction afterwards. When lift arrive at landing, illumination of corresponding button will be off.
- Attendant operation: lift can be changed from normal operation mode to attendant operation mode by an “Priority Switch” located on Car Operating Panel (COP). During this operation, lift only serves calls from car inside.
Car door safety device
This device makes doors open automatically while closing to aim preventing passengers or other objects knocked against doors
Automatic door open/close time adjustment
Door open/close times are automatically adjusted depending on numbers of hall or car calls in order to increase operating efficiency
Over load
When car load exceeds rated load, indicator is on, a buzzer sounded and lift is prevented from starting
Arrival announcement
Indicator displays the landing floor, a buzzer sounded
Car fan and light turn-off Automatically
For energy saving, car fan and light turn off automati-cally in case there is no hall call or car call
Emergency light
In case of power failure, emergency light on car ceiling turned on automatically
Intercom system
In case of emergency, press the “Emergency button” located on car operating panel to communicate with responsible persons.
Automatic Rescue Device
When there is a power failure while the elevator is in use, the ARD (Automatic Rescue Device) will move the elevator cabin to the nearest floor and open the doors to allow passengers to exit, powered by the self-charging LiFeO4 battery.
